In this integration, the Apple Pay SDK returns an encrypted payment token after customer authentication. The token is submitted to PayGate via a Token Payment Request, where it is decrypted using your configured Apple Pay processing certificate and authorised against the card network.

Prerequisites

Before implementing Apple Pay Host-to-Host payments, ensure the following have been completed:

An active Apple Developer Account with Apple Pay enabled
A registered Apple Pay Merchant ID
Apple Pay configured in the Merchant Access Portal (MAP)
PayHost (Host-to-Host) access enabled for your PayGate account

Merchant Processing Certificate Setup

To process Apple Pay transactions, a payment processing certificate must be created and uploaded. This certificate allows PayGate to decrypt Apple Pay tokens on your behalf.

1. Generate a Certificate Signing Request (CSR)

Log in to the Merchant Access Portal (MAP)
Navigate to:

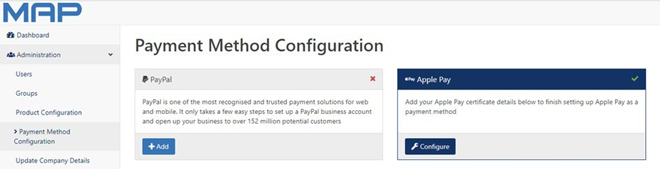

Administration → Payment Method Configuration → Apple Pay

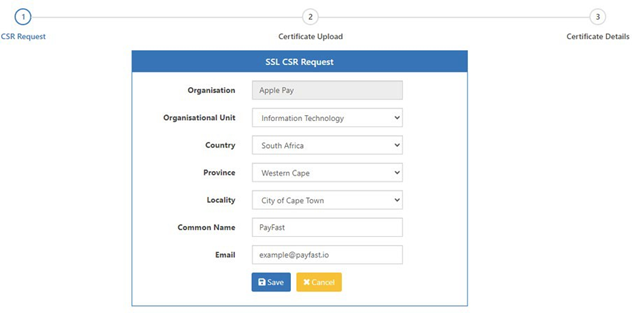

Select Configure
Enter the required details
In the Common Name field, enter your Merchant ID (FQDN format)

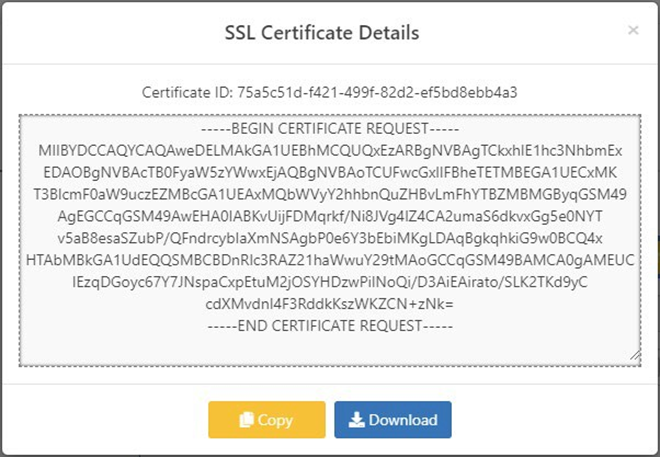

Save and download the generated CSR

2. Upload CSR to Apple Developer Portal

Sign in to your Apple Developer account
Navigate to:

Certificates, IDs & Profiles → Identifiers → Merchant IDs

Select your Merchant ID
Under Apple Pay Payment Processing Certificate, choose Create Certificate
Upload the CSR generated in MAP
Download the issued certificate (.cer file)

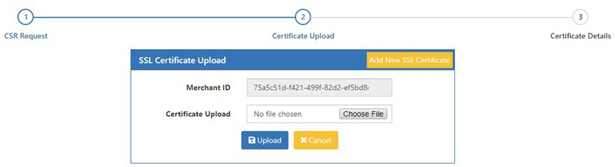

3. Upload Certificate to PayGate

Return to MAP → Apple Pay configuration
In the Certificate Upload section:
- Choose the downloaded .cer file
- Upload the certificate

Confirm successful upload

Once completed, PayGate can decrypt Apple Pay tokens for your transactions.

Processing an Apple Pay Payment

Step 1 — Obtain the Token

After the cardholder authorises payment using Apple Pay, the Apple Pay SDK returns an encrypted payload via the onpaymentauthorized callback.

The payload includes a token object containing encrypted payment data and signature information.

Step 2 — Extract the Token Object

Extract the token object from the Apple Pay payload.

Step 3 — Base64 Encode the Token

Encode the extracted token object as a Ba### Step 4 — Submit a Token Payment Request

Include the Base64-encoded token in the <Token> field of a PayHost TokenPaymentRequest.

Set:

<TokenDetail>ApplePay</TokenDetail>

Send the request to the PayHost endpoint for processing.

📨 Sample Token Payment Request (SOAP)

<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
  <SOAP-ENV:Header/>
  <SOAP-ENV:Body>
    <SinglePaymentRequest xmlns="http://www.paygate.co.za/PayHOST">
      <TokenPaymentRequest>
        <Account>
          <PayGateId>{{paygate_id}}</PayGateId>
          <Password>{{encryption_key}}</Password>
        </Account>

        <Customer>
          <Title>Mr</Title>
          <FirstName>Joe</FirstName>
          <LastName>Soap</LastName>
          <Email>joe@soap.com</Email>
        </Customer>

        <Token>{{base64_encoded_token}}</Token>
        <TokenDetail>ApplePay</TokenDetail>

        <Order>
          <MerchantOrderId>a-random-reference</MerchantOrderId>
          <Currency>ZAR</Currency>
          <Amount>1000</Amount>
        </Order>

      </TokenPaymentRequest>
    </SinglePaymentRequest>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

📬 Token Payment Response

PayGate returns a TokenPaymentResponse containing the authorisation result.

Successful Response Example

<SinglePaymentResponse>
  <TokenPaymentResponse>
    <Status>
      <TransactionId>1937211563</TransactionId>
      <Reference>a-random-reference</Reference>
      <StatusName>Completed</StatusName>
      <TransactionStatusDescription>Approved</TransactionStatusDescription>
      <AuthCode>072961</AuthCode>
      <Currency>ZAR</Currency>
      <Amount>1000</Amount>
    </Status>
  </TokenPaymentResponse>
</SinglePaymentResponse>
