Overview

Samsung Pay Host-to-Host allows merchants to process Samsung Pay transactions using PayGate’s Token Payment flow. After a customer authorises payment via Samsung Pay, the merchant retrieves a payment token from Samsung and submits it to PayGate for processing.

This integration uses:

Samsung Pay Web Checkout / SDK
Samsung Pay Developer Services
PayGate Merchant Access Portal (MAP)
PayGate Token Payment API

Prerequisites

Before implementing Samsung Pay Host-to-Host, ensure the following are completed:

Samsung Pay Developer Setup

Create a Samsung Account
Register on the Samsung Pay Developers site
Obtain approval from a Samsung Pay Relationship Manager
Create a Service (Test or Release)
Register your application and obtain Service ID

flowchart LR
    A[Sign-in with Samsung Account]
    B[Agree to T&C]
    C[Select Service Location]
    D[Complete Registration Form]
    E[Submit Sign-up Request]
    F[RM Approval]

    A --> B --> C --> D --> E --> F

Samsung Pay offers several service types, including:

In-App Payments
App-to-App Card Enrolment
Web Checkout
Internal APK

PayGate Certificate Setup

You must create a Certificate Signing Request (CSR) via the PayGate Merchant Access Portal (MAP). This certificate is used to decrypt Samsung Pay tokens.

Create CSR in MAP

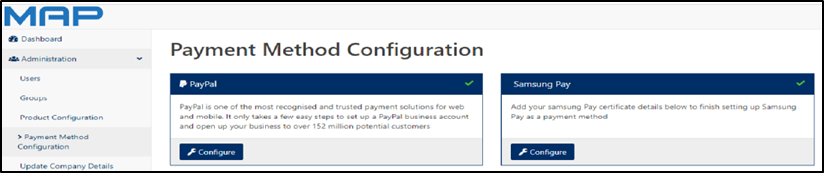

Log in to the Merchant Access Portal (MAP)
Navigate to Payment Method Configuration

Create a new CSR

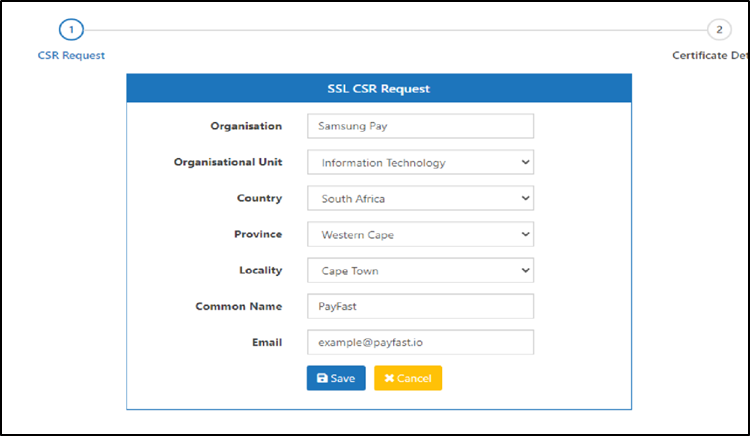

Complete required fields
- The Common Name must be a Fully Qualified Domain Name (FQDN)

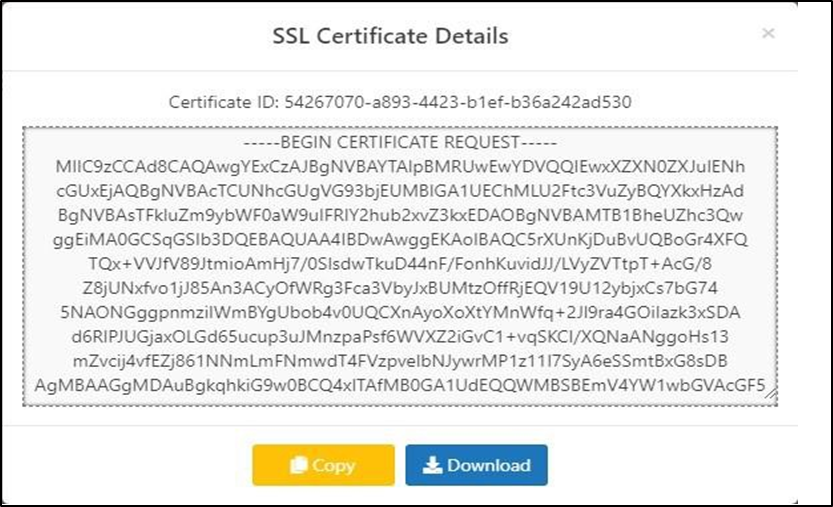

Save and Download the CSR.

Once the download is finished, it will be marked as complete.

Upload CSR to Samsung Pay

Log in to Samsung Pay Developer Account
Navigate to My Projects → Service Management
Create a new service (or edit an existing one)
Upload the CSR generated from MAP

Payment Processing Flow

The payment process consists of three major steps:

Customer authorises payment using Samsung Pay
Merchant retrieves the payment token from Samsung
Merchant submits token to PayGate for processing

End-to-End Transaction Flow (Mermaid)

sequenceDiagram
    participant Customer
    participant MerchantApp
    participant SamsungPay
    participant MerchantServer
    participant PayGate

    Customer->>MerchantApp: Select Samsung Pay
    MerchantApp->>SamsungPay: Initiate payment
    SamsungPay->>Customer: Request authentication
    Customer->>SamsungPay: Approve payment
    SamsungPay->>MerchantApp: Return ref_id (callback)

    MerchantApp->>MerchantServer: Send ref_id
    MerchantServer->>SamsungPay: Request token (Web Checkout API)
    SamsungPay-->>MerchantServer: Return payment payload

    MerchantServer->>MerchantServer: Base64 encode payload
    MerchantServer->>PayGate: TokenPaymentRequest (encoded token)
    PayGate-->>MerchantServer: TokenPaymentResponse
    MerchantServer->>MerchantApp: Payment result

Step 1 — Obtain the Payment Token

After the cardholder approves the Samsung Pay transaction, Samsung returns a ref_id in the callback.

Use this reference to retrieve the payment credentials from the Samsung Web Checkout API.

The response contains a payment payload representing the tokenised payment data.

{
  "resultCode": "0",
  "resultMessage": "SUCCESS",
  "method": "3DS",
  "features": [],
  "card_brand": "VI",
  "card_last4digits": "3990",
  "3DS": {
    "type": "S",
    "version": "100",
    "data": "eyJhbGciOiJSUzUxMiIsInR5cCI6IkpXVCJ9..."
  },
  "wallet_dm_id": "9._wrsI6lax_VYLKbqvug1Ula3NYEja9FFAIYr0Y9c="
}

Step 2 — Encode the Payload

The payload received from Samsung must be encoded using Base64 before being sent to PayGate.

Why Encoding Is Required

PayGate expects the token in Base64 format to safely transmit the encrypted payment data.

Step 3 — Submit Token Payment Request

Send a TokenPaymentRequest to PayGate containing the Base64-encoded token.

TokenPaymentRequest Flow (Mermaid)

flowchart LR
    A[Samsung Pay Payload] --> B[Base64 Encode]
    B --> C[Insert into Token field]
    C --> D[Send TokenPaymentRequest to PayGate]
    D --> E[Receive TokenPaymentResponse]

Token Payment Request

Insert the Base64-encoded token into the Token field of the request.

Your existing PayGate Token Payment integration handles the remaining fields (merchant credentials, amount, etc.).

<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
  <SOAP-ENV:Header/>
  <SOAP-ENV:Body>
    <SinglePaymentRequest xmlns="http://www.paygate.co.za/PayHOST">
      <TokenPaymentRequest>

        <Account>
          <PayGateId>{paygate_id}</PayGateId>
          <Password>{encryption_key}</Password>
        </Account>

        <Customer>
          <Title>Mr</Title>
          <FirstName>Joe</FirstName>
          <LastName>Soap</LastName>
          <Email>joe@soap.com</Email>
        </Customer>

        <Token>
          ewoJGAcg...BASE64_ENCODED_SAMSUNG_PAY_TOKEN...RZRob
        </Token>

        <TokenDetail>
          SamsungPay</TokenDetail>

        <Order>
          <MerchantOrderId>a-random-reference</MerchantOrderId>
          <Currency>ZAR</Currency>
          <Amount>1000</Amount>
        </Order>

      </TokenPaymentRequest>
    </SinglePaymentRequest>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

Token Payment Response

PayGate returns a TokenPaymentResponse indicating:

Authorisation result
Transaction status
Relevant reference data

Use this response to update the payment status in your system.

<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
  <SOAP-ENV:Header/>
  <SOAP-ENV:Body>
    <ns2:SinglePaymentResponse xmlns:ns2="http://www.paygate.co.za/PayHOST">
      <ns2:TokenPaymentResponse>

        <ns2:Status>

          <ns2:TransactionId>1937211863</ns2:TransactionId>
          <ns2:Reference>a-random-reference</ns2:Reference>

          <ns2:AcquirerCode>00</ns2:AcquirerCode>
          <ns2:StatusName>Completed</ns2:StatusName>
          <ns2:AuthCode>072961</ns2:AuthCode>

          <ns2:PayRequestId>C6FE5732-EA71-4EE6-A3D2-2146E10A111D</ns2:PayRequestId>

          <ns2:TransactionStatusCode>1</ns2:TransactionStatusCode>
          <ns2:TransactionStatusDescription>Approved</ns2:TransactionStatusDescription>

          <ns2:ResultCode>990017</ns2:ResultCode>
          <ns2:ResultDescription>Auth Done</ns2:ResultDescription>

          <ns2:Currency>ZAR</ns2:Currency>
          <ns2:Amount>1000</ns2:Amount>

          <ns2:RiskIndicator>XX</ns2:RiskIndicator>

          <ns2:PaymentType>
            <ns2:Method>CC</ns2:Method>
            <ns2:Detail>Visa</ns2:Detail>
          </ns2:PaymentType>

        </ns2:Status>

      </ns2:TokenPaymentResponse>
    </ns2:SinglePaymentResponse>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

Service Registration Notes (Samsung Pay)

Debug vs Release Services

Samsung Pay supports two service modes:

Mode	Purpose
Test	Limited testing with selected Samsung accounts
Release	Production use

Debug Key

Used during testing to validate the partner app
Must be included in the app manifest
Valid for approximately 3 months
Should never be exposed in logs

App Registration

Samsung Pay requires app registration for services using:

In-App Payments
App-to-App Enrolment

Two build types can be registered:

Build Type	Description
Debug Build	Used for testing and QA
Release Build	Production build for end users

Service Status Lifecycle

During integration, services may have different statuses:

Status	Meaning
Creating	Registration incomplete
Debugging	Testing enabled
Requesting	Release approval pending
Approved	Ready for release
Blocked	Service disabled

Glossary

CSR — Certificate Signing Request

A cryptographic file generated to request a digital certificate from a Certificate Authority. Used here to decrypt Samsung Pay tokens.

FQDN — Fully Qualified Domain Name

A complete domain name specifying an exact location in DNS (e.g., www.example.com).

Base64 Encoding

A method for converting binary data into ASCII text format for safe transmission.
